Features
Oven Control / Timing System
Ready-Select Controls
Surface Type
Color-Coordinated Porcelain

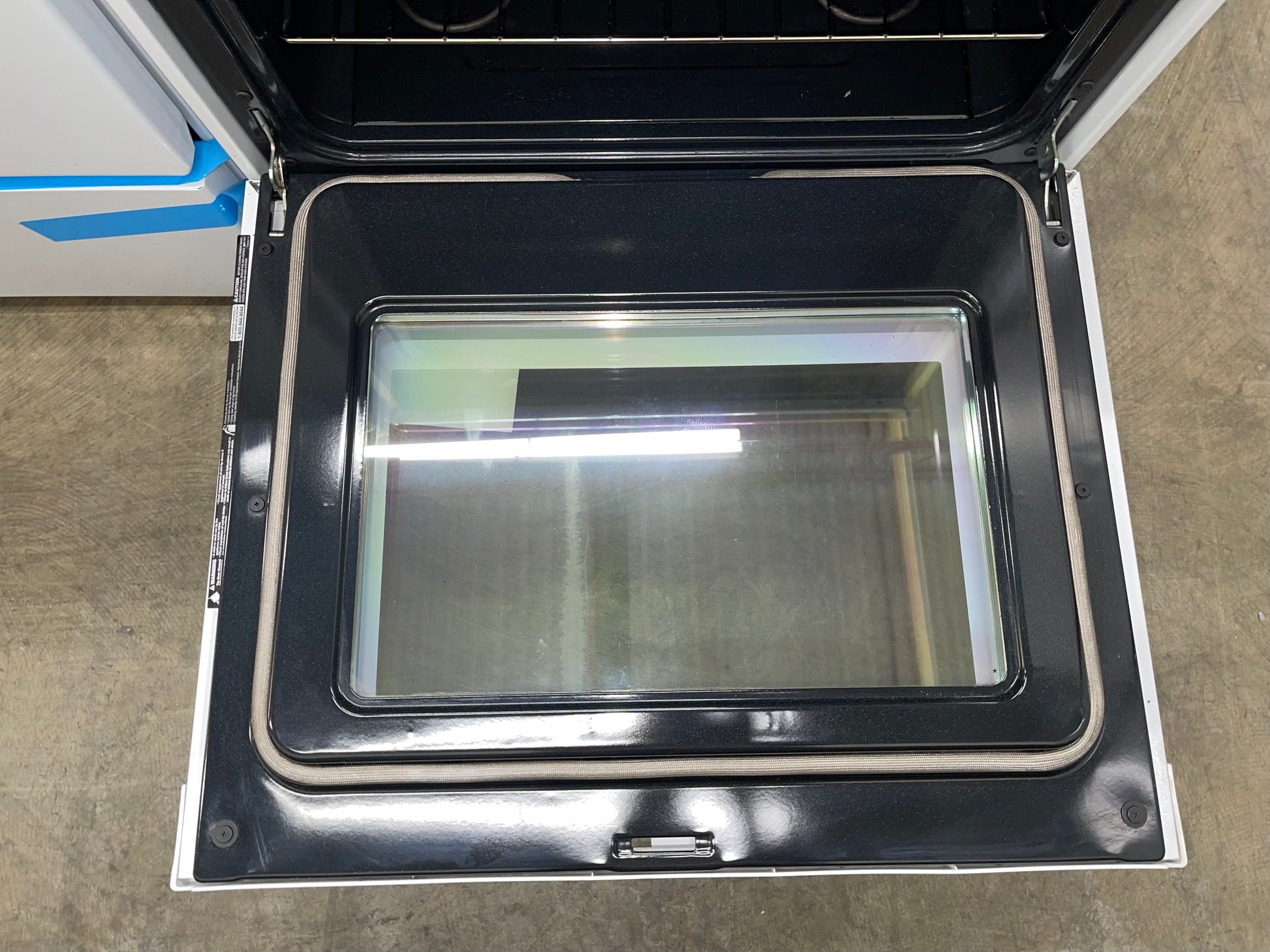

Window
Extra-Large
Exterior Door Finish
Color-Coordinated ( W/B )
Handle Design
Color-Coordinated ( W/B )
Exterior Finish (Side Panels)
Color-Coordinated ( W/B )
Convection System
Oven Cleaning System
Self Clean

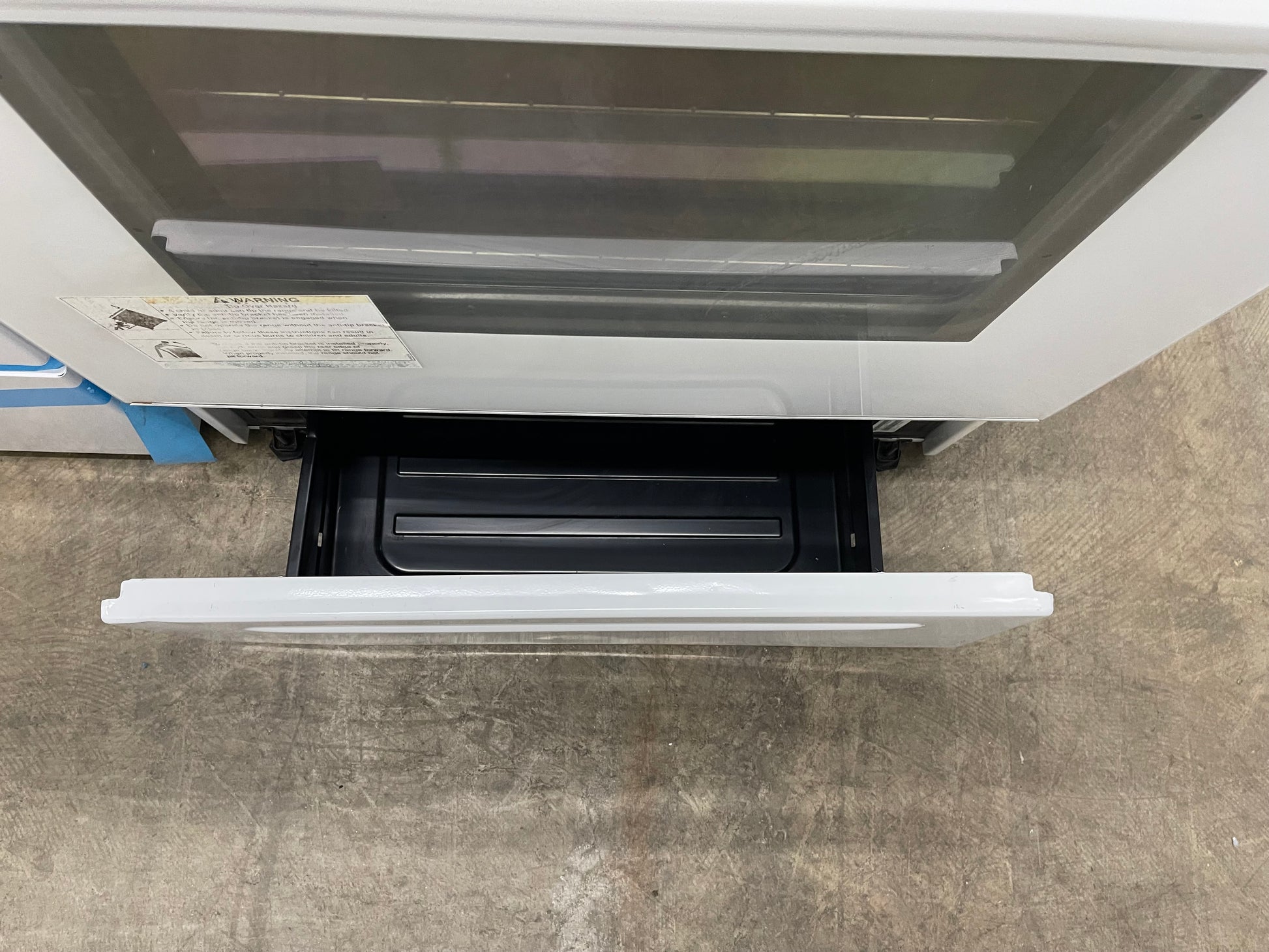

Drawer Functionality
Storage
Oven Controls
Bake
Yes
Broil
Low and High
Add-a-Minute
Delay Start
Self-Clean / Clean Options
Yes / 2, 3 Hours
Steam Clean
Delay Clean
Kitchen Timer
Yes
Timed Cook Option
Yes
Auto Oven Shut-Off
12 Hours
Oven Lock-Out
Yes
Cooktop Features
A
Right Front Element (Watts)
6" – 1,250
Right Rear Element (Watts)
8" – 2,100
36"
(Adjustable)
Left Front Element (Watts)
8" – 2,100
Left Rear Element (Watts)
6" – 1,250
Center Element (Watts)
Hot Surface Indicator Light
Yes
Coil Cooktop / Drip Bowls
Yes / Chrome
Oven Features
Capacity (Cu. Ft.)
5.3
Oven Light
1
Hidden Bake Element
C
Rack Configuration
2 Standard
B
Baking System
Even Baking Technology
Broiling System
Vari-Broil™ Hi / Lo
Bake Element / Broil Element (Watts)
2,600 / 3,000
Specifications
Oven Interior ( H x W x D )
19-3/4" x 24-3/8" x 19-1/8"
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Power Supply Connection Location
Middle Bottom Rear
Voltage Rating
240V / 208V / 60Hz
Product Dimensions
Cutout Dimensions
Connected Load
(kW Rating) @ 240 / 208 Volts
12.5 / 9.5
A - Height (Max.)
47-3/4"
Height (Standard)
36"
B - Width
29-7/8"
Width (Min.)
30"
Minimum Circuit Required (Amps)
40
C - Depth (Including Handle)
29-1/4"
Depth (Min.)
24"
Shipping Weight (Approx.)
170 Lbs.
